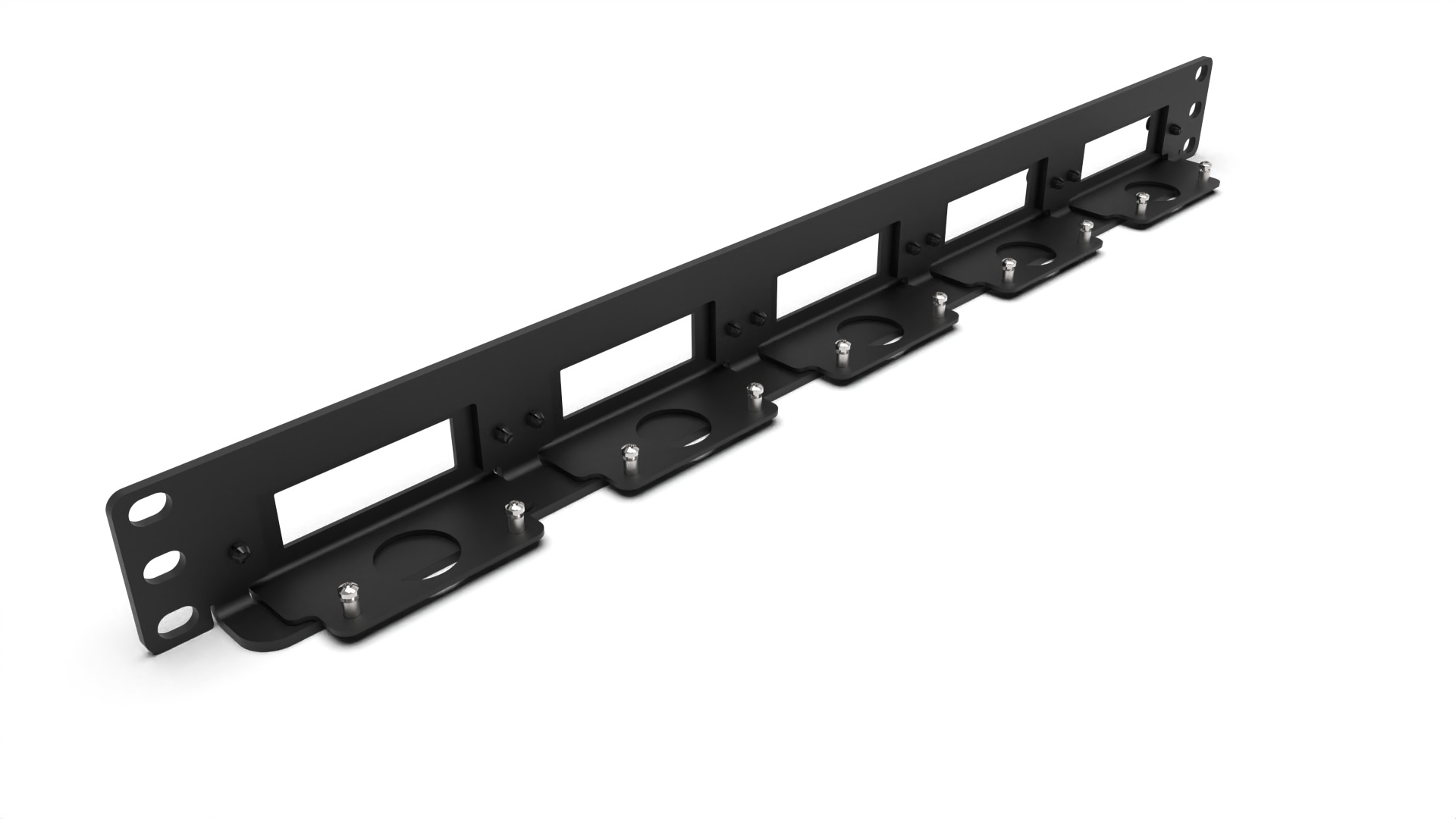

19 inch 1U rack mount for Raspberry Pi

Suitable for the following models:

  • Raspberry Pi 5 Model B
  • Raspberry Pi 4 Model B
  • Raspberry Pi 3 Model B+
  • Raspberry Pi 3 Model B
  • Raspberry Pi 2 Model B
  • Raspberry Pi 1 Model B+

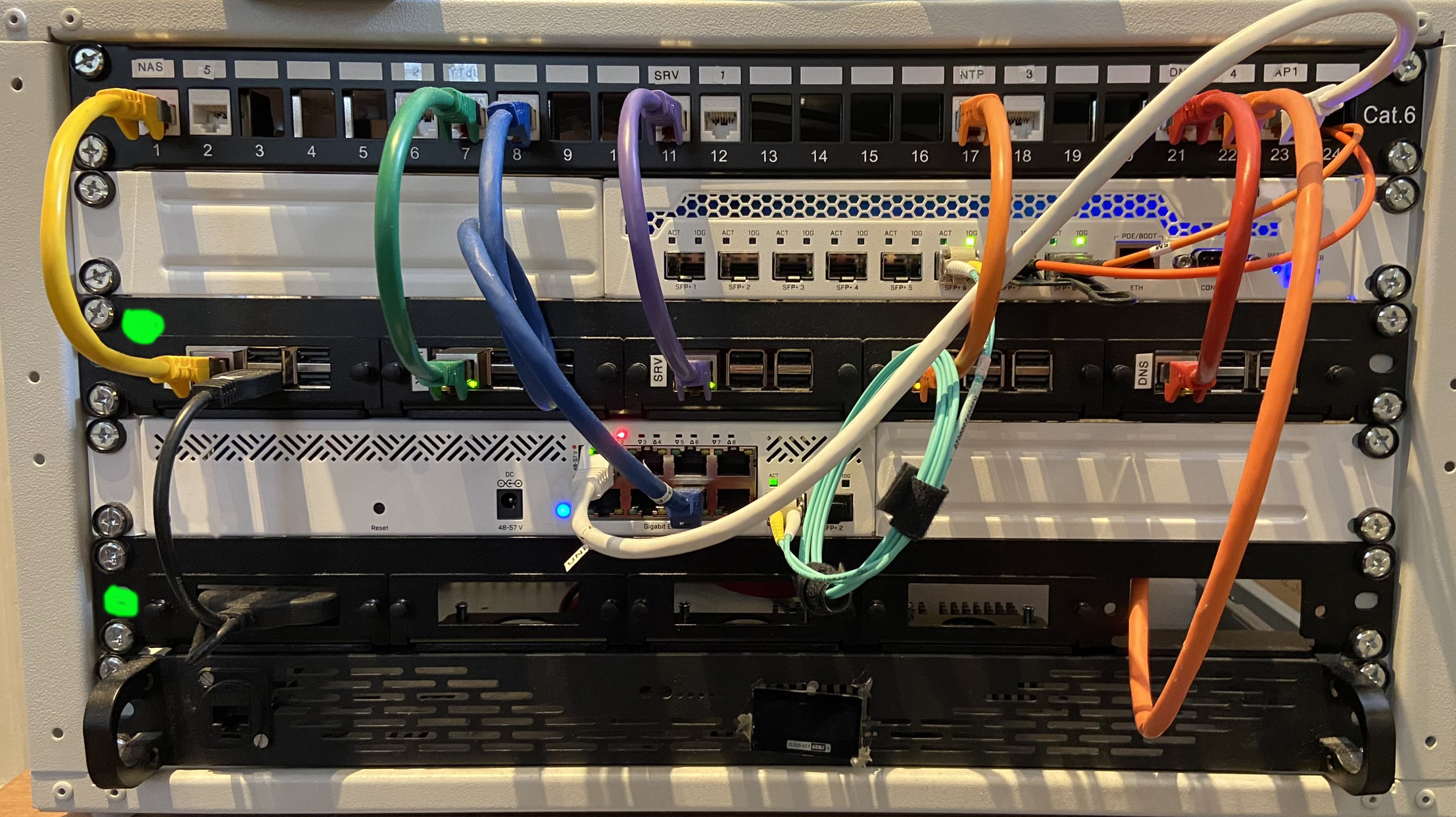

Site:

I have the previous model...
The current model with space for RPi-5 M.2 HAT.
There is also enough space for the new standard of Raspberry Pi HATs (HAT+):

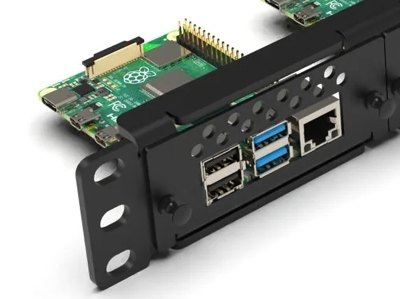

A front-removable 1U rack with space for 5 Raspberry Pi's

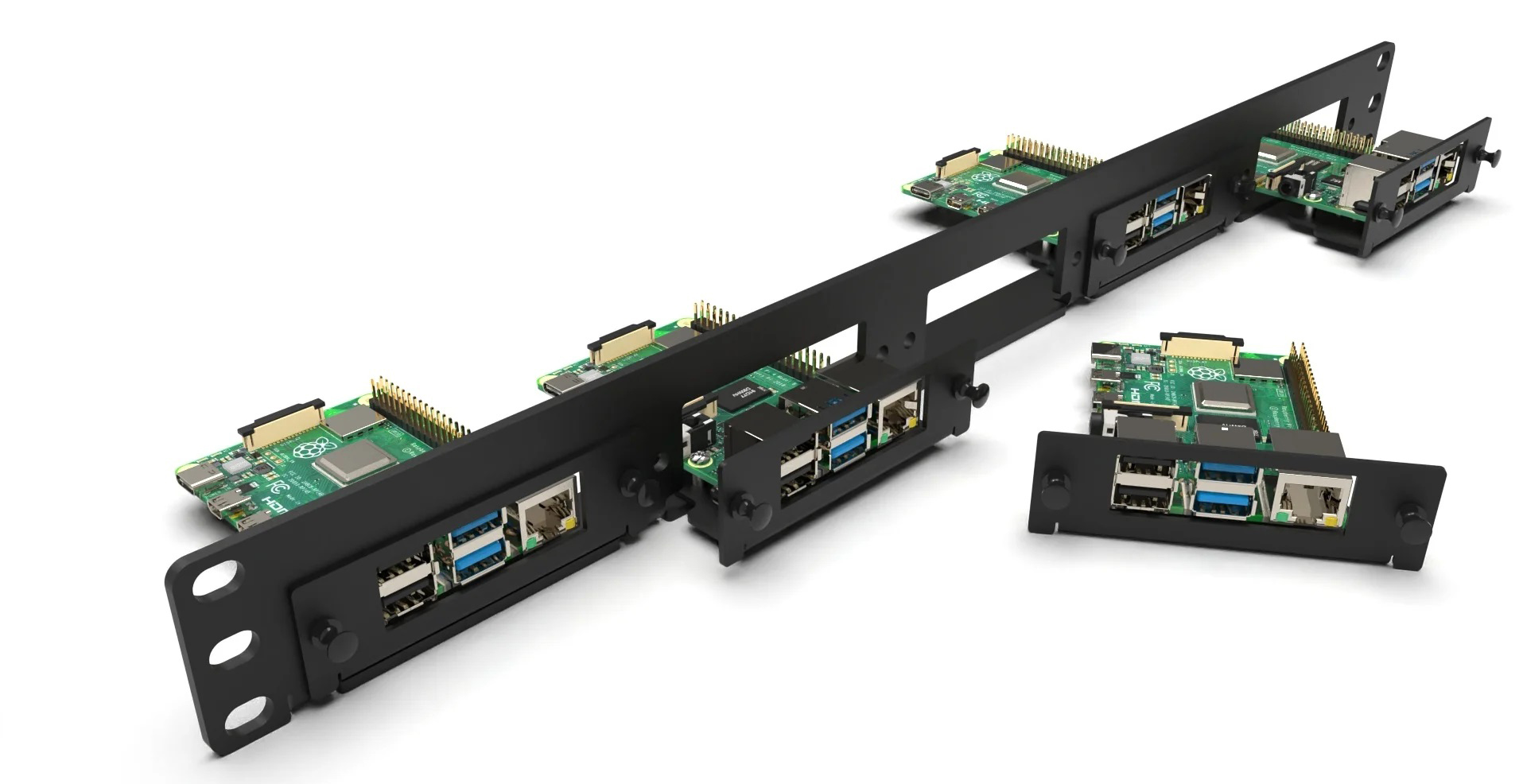

Each Raspberry Pi can be individually removed from the rack mount from the front, while the rest remains in place. Quickly and easily with two handy fast-click buttons. No tools are needed.
Changing the SD card is no longer a problem. Simply slide out the RB Pi at the front and voilà: SD card is easily accessible.

Sizes:

  • Depth: 33 mm (42 mm including 'fast-click' buttons)
  • Width: 48,3 cm (19 inch)
  • Height: 44 mm (fits 1U)


Back:

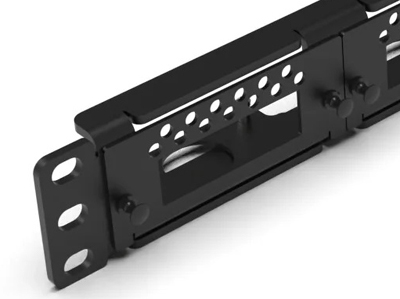

Front:


(Click for larger image)
Green dots 19 inch 1U rack mount:
