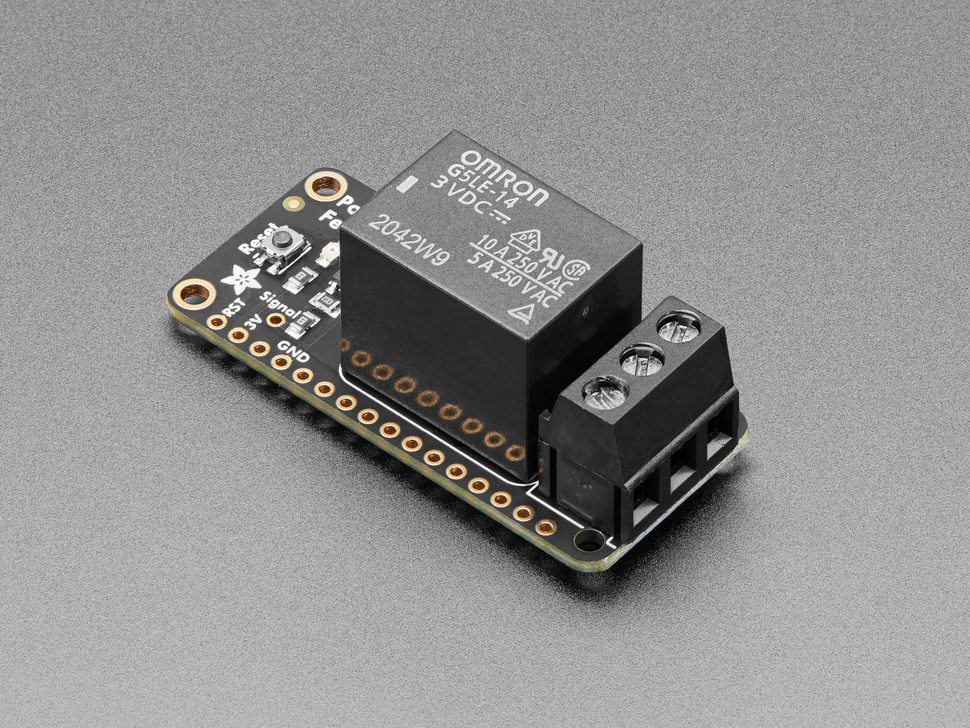

Adafruit Power Relay FeatherWing
10 A of resistive-load current at 120 VAC, 5 A at 240 VAC
A Feather board without ambition is a Feather board without FeatherWings! This is the Power Relay FeatherWing. It gives you power to control, and control over power. Put simply, you can now turn on and off lamps, fans, solenoids, and other small appliances that run on up to 250VAC or DC power using any Feather board. Compared to our smaller Relay FeatherWings, this one can handle a beefy 1200 Watts!
Works with all/any of our Feather boards, just wire up the relay control pin to whatever GPIO you like! Using our Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight.
This Wing has a non-latching type relay. You can switch up to 10 A of resistive-load current at 120 VAC, 5 A at 240 VAC. With inductive loads, about half that. Check the datasheet for the relay for the exact switching capacity, as it depends on type of load and voltage type and magnitude. This relay is good for handling fairly large devices, computers, TVs, small appliances, and more.
