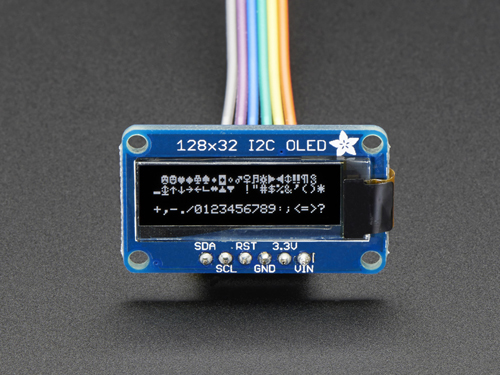

Adafruit Monochrome 128x32 I2C OLED graphic display


Dimensions:

  • PCB: 20mm x 35mm (0.8" x 1.4")
  • Display area: 7mm x 25mm
  • Thickness: 4mm
Display details:
  • Diagonal Screen Size: 0.91"
  • Number of Pixels: 128 x 32
  • Color Depth: Monochrome (White)
  • Module Construction: COG
  • Module Size (mm): 46.30 x 11.50 x 1.45
  • Panel Size (mm): 30.00 x 11.50 x 1.45
  • Active Area (mm): 22.384 x 5.584
  • Pixel Pitch (mm): 0.175 x 0.175
  • Pixel Size (mm): 0.159 x 0.159
  • Duty: 1/32
  • Brightness ( cd/m2): 150 (Typ) @ 7.25V
  • Interface: I2C
  • Display current draw is completely dependent on your usage: each OLED LED draws current when on so the more pixels you have lit, the more current is used. They tend to draw ~15mA or so in practice but for precise numbers you must measure the current in your usage circuit.
  • This board/chip uses I2C 7-bit address 0x3C
