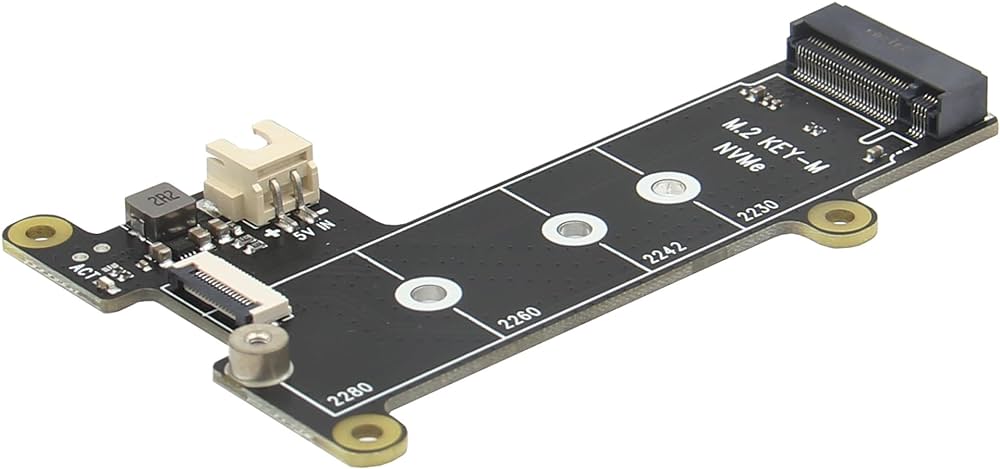

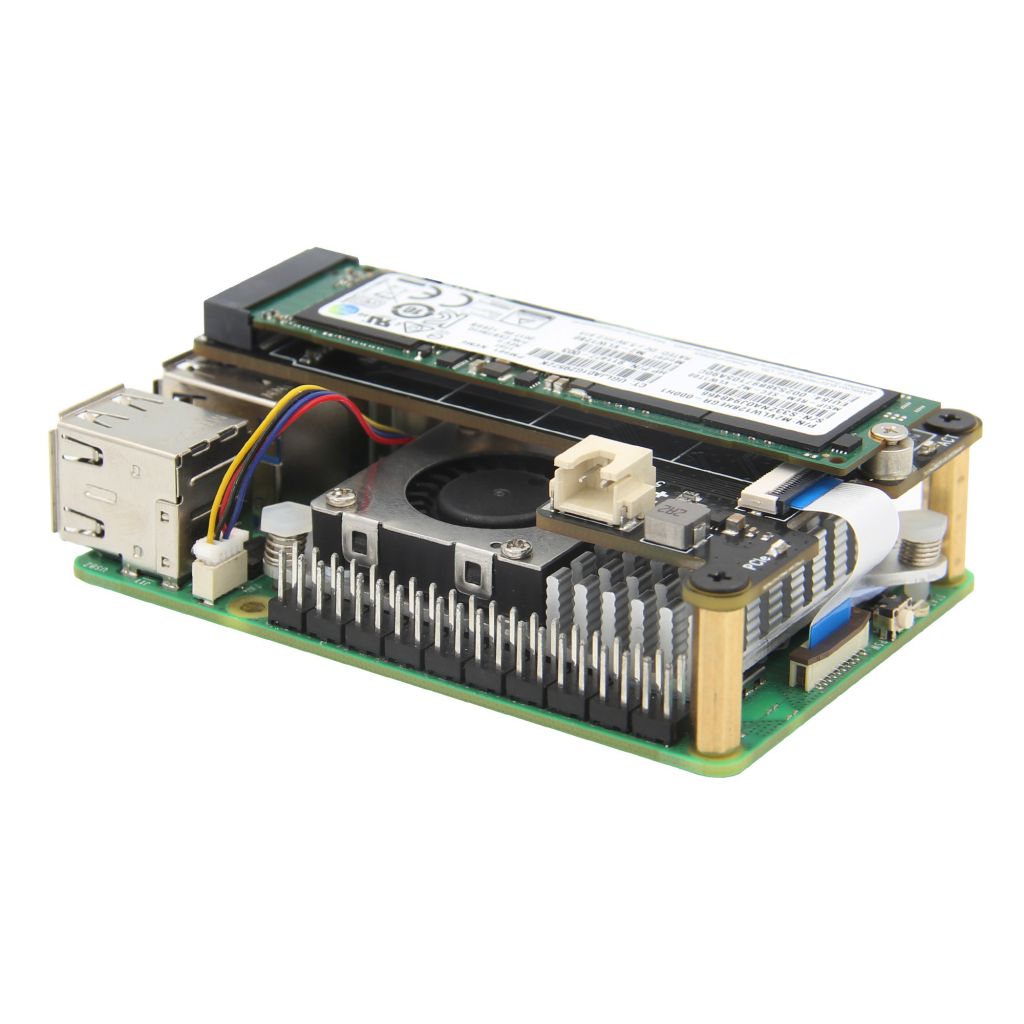

| Features: |
- Compatible with other HAT shield
- FFC is only 30 mm length
- Supports installation of official Raspberry Pi active coolers
- PCIe LED Indicators: PCIe - The LED will be on if the SSD is recognised
- Supports 2230/2242/2260/2280 NVME M2 SSD
- Can power the X1001 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)
- Maximum current for PCIe connector is 1 A, and voltage is 5 V
- Integrated with XH2.54 5 V power connector, just use it if you are using a ultra large capacity SSD if the current is not enough
|
|
- Support NVMe Boot - Yes
- Support Hailo-8 AI Accelerator - Yes
|
| Supplied with: |
- PCIe FFC Cable 30 mm length
- M2.5x17mm F/F Spacers
- M2.5x5mm Screws
- M2x4mm Screw (to fix M2 SSD)
- Copper pillar (Used to fix 2230/2242/2260 SSDs)
|
